Description
Features
Natural Convective Heat

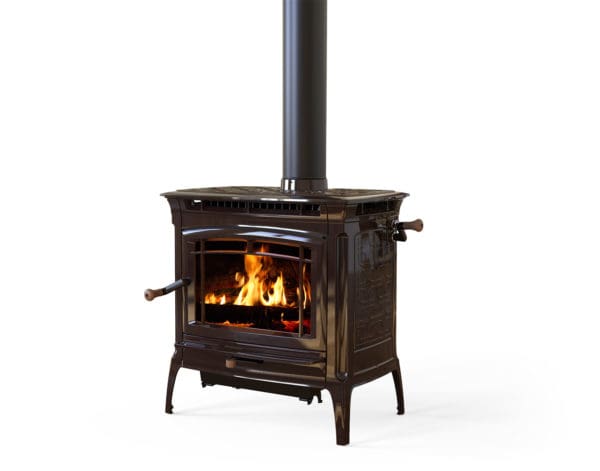

The Manchester is built with an air channel up the back and across the top of the stove which helps circulate warm air through your home.
Convenient Features
Load your fireplace through the side door and use the integral ash pan to help keep your hearth clean and tidy.
TruHybrid™ + Soapstone
Lined with soapstone blocks and using our TruHybrid™ technology, the Manchester offers long-lasting and efficient heat.
Specifications
Ash Pan: Included
BTU: Up to 75,000
Efficiency: 78% HHV
EPA Certified: 0.65 g/hr
Finish: Brown Enamel, Matte Black
Firebox Capacity: 2.9 cu ft
Flue Exit Diameter: 6
Flue Exit Location: Top or Rear
HeatLife: 30 Hours of heat
Heats up to: 2,400 sq ft
Maximum Log Length: 24″
Model: 800-32WO73, 800-40WO74, 800-45WO73, 800-58WP73, 8013, 8024, 8031, 810-1510, 810-2510, 8171, 8220, 8302, 8303, 8323, 8324, 8325, 8362, 8392, 8411, 8420, 8450, 8492, 8640, 8660, 8680, 8763, 8770, 8S310
Rear Heat Shield: Included
Side Load Door: Left
Stove Type: Cast Iron Wood Stove
Weight: 520 lbs
Accessories
Convection Blower: 93-57600
Close Clear. Heat Shield: 93-68600
Outside Air Adapter: 93-53500
Side Door Lock Kit: 93-70607
Clearances
Side: 18″
Rear: 16″
Corner: 9″
Single-wall connector pipe, no close-clearance heat shield
Side: 16″
Rear: 6″
Corner: 9″
Double-wall connector pipe with close-clearance heat shield
